Work with digital functions and Karnaugh maps, minimize and see their schematic.
Use this app to play around truth tables and Karnaugh maps.
This application is intended primarily to students and hobbyists of electronics
engineering, allowing you to keep a list of logic functions, entering them by
their truth-table and viewing its corresponding Karnaugh map and minimized logic
circuit.

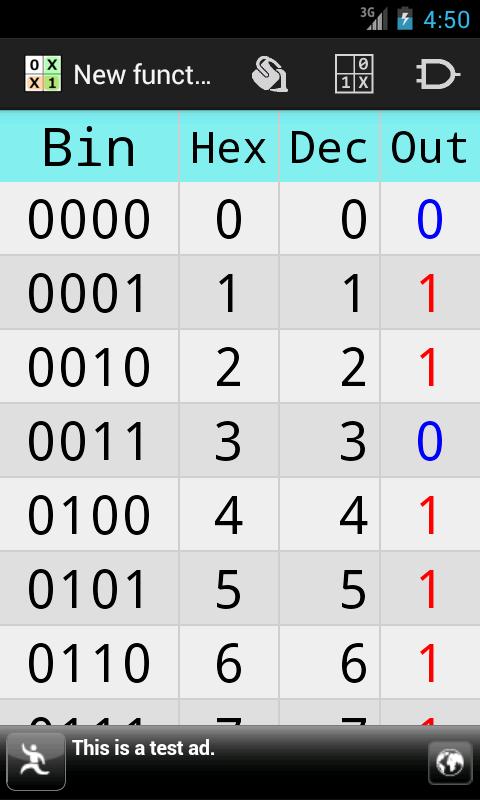

With this application you can enter a logic function of n inputs, fill a truth table and see its corresponding Karnaugh map.

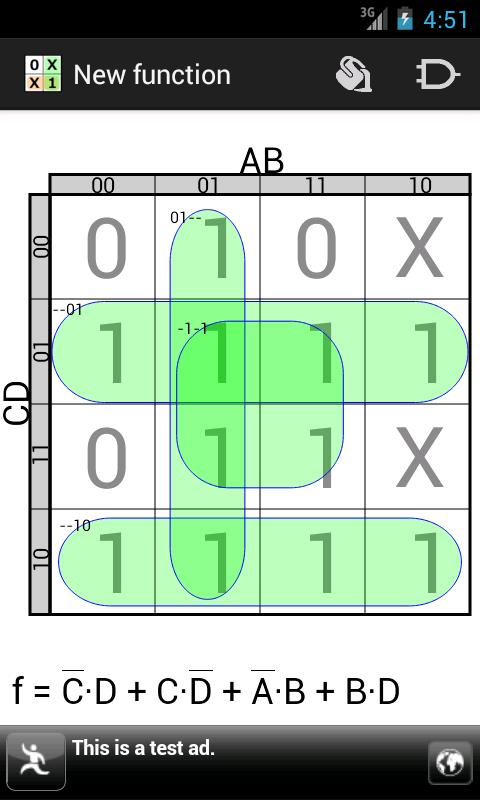

You can also edit the function from the Karnaugh map and see the minterm form of the simplified equation.
Key features:

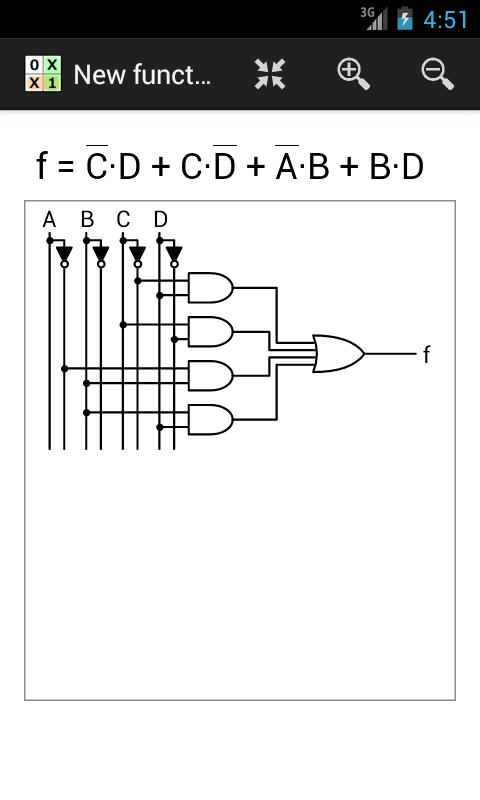

List of multiple logic functions, ranging from 1 to 10 inputs.Edit a function by truth-table.Edit a function graphically over its Karnaugh Map.See simultaneously its minimized form while editing.View the minimized function and its circuit.
